Advanced Brookfield Rheometers for High‑Performance Labs in Egypt | Gemicatech

For R&D and QC labs in Egypt, choosing the right Brookfield rheometer is the difference between trial‑and‑error and confident, data‑driven process control. Through Gemicatech, an authorized AMETEK Brookfield distributor in Egypt, laboratories can access a complete portfolio of advanced rheology and texture testing instruments—covering viscosity, yield stress, viscoelastic behavior, and texture analysis—with local technical support and service.

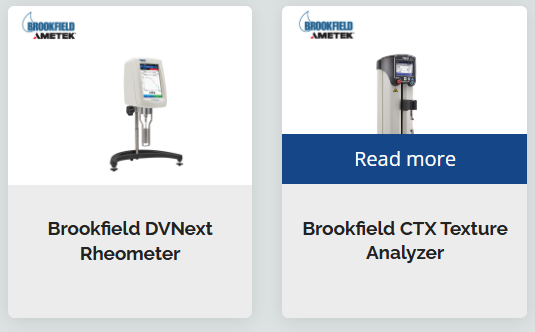

Brookfield DVNext Rheometer – Next‑Generation Viscosity & Yield Stress Control

The Brookfield DVNext Rheometer is Brookfield’s latest evolution in rotational rheology, combining advanced functionality with the repeatability and reliability labs have trusted for decades. As an easy‑to‑use, stand‑alone instrument, it measures viscosity and yield stress with high accuracy and is available in both Standard and 21 CFR Part 11 compliant versions for regulated industries.

Key advantages include:

  • 7‑inch full‑color touchscreen with enhanced controls and real‑time graphing of viscosity, temperature, shear rate/stress, % torque, speed/spindle, program status, and math model calculations

  • Integrated temperature control via Brookfield TC baths or Thermosel systems to analyze yield stress, flow curves, leveling, and recovery under real process conditions

The DVNext supports optional Gel Timer functionality using a unique magnetic coupling, programmable QC limits and alarms, and USB PC connectivity for automatic data collection and time‑stamped files. With multiple spring options (LV, RV, HA, HB), it covers everything from low‑viscosity inks and oils to heavy materials like gels, chocolate, asphalt, and molasses.

Brookfield CTX Texture Analyzer – Real‑Life Performance, Beyond Viscosity

While viscosity and rheology are crucial, many products also need mechanical and texture testing. The Brookfield CTX Texture Analyzer brings a new dimension of compression and tension testing that shows how materials behave in real‑life use. The CTX Texture Analyzer is designed for fast, efficient testing in busy labs that need to increase productivity without sacrificing quality.

Main benefits include:

  • Interchangeable load cells from 100 g to 100 kg for maximum flexibility

  • Easy‑to‑read display and intuitive controls for quick setup and operation

  • Extended boom travel up to 280 mm and three adjustable base tables for different sample sizes and formats

  • 500 Hz data output rate to capture the exact moment structural changes occur in the sample

CTX is ideal for testing tablet hardness, yogurt lid peelability, lipstick tensile strength, packaging integrity, and more. With optional TexturePro software (standard and advanced 21 CFR Part 11‑compliant versions), it becomes a powerful platform for R&D characterization and QC documentation, with data export in multiple formats.

Brookfield RSO Rheometer – Precision Oscillatory Rheology for QC & R&D

The Brookfield RSO Rheometer is designed for rapid, accurate rheological testing using oscillatory measurements with a low‑friction air bearing, enabling very precise viscoelastic characterization. It is ideal for both Quality Control and Research & Development environments that need high‑sensitivity data.

Highlights include:

  • Controlled shear stress and shear rate modes for studying static yield, flow curves, and viscoelastic behavior

  • User‑friendly touchscreen and graphical interface for simple stand‑alone operation

  • Flexible measurement system supporting both cone/plate and concentric cylinder geometries in a single instrument

RSO is optimized for small sample sizes, making setup and cleanup fast and convenient, especially when sample availability is limited. Features like quick connect spindle coupling, automatic spindle recognition via barcode, automatic gap setting, and rapid Peltier temperature control ensure reliable, repeatable results with minimal user error. For advanced workflows, optional Rheo3000 software provides PC control, multi‑file data acquisition, and powerful analysis tools.

Brookfield RSX Cone Plate Rheometer – High‑End Controlled Rate & Stress Analysis

For labs that demand the highest level of control over shear rate and shear stress, the Brookfield RSX Cone Plate Rheometer is a sophisticated solution. It operates in both controlled shear rate (rpm) and controlled shear stress (torque) modes, making it ideal for detailed rheological studies in R&D as well as robust QC testing.

Key features:

  • Large, user‑friendly touchscreen for efficient test setup and monitoring

  • Quick connect coupling for rapid spindle changes and secure mounting

  • Auto spindle recognition via barcode and automatic gap setting, minimizing setup time and manual errors

  • Small required sample volume for fast testing and easy cleaning

  • Rapid temperature control via Peltier or fluid‑heated options for stable, repeatable conditions

Thanks to its rugged design and powerful 200 mNm torque motor, the RSX handles tough samples and demanding applications in adhesives, biomass, food and beverages, gypsum, pharmaceuticals, chemical production, paints and coatings, and petroleum. A wide selection of cone and plate spindles, thermal barriers, and circulating temperature baths allows you to tailor the system precisely to your materials and processes.

Take Your Rheology to the Next Level with Gemicatech

When you bring together DVNext, CTX, RSO, and RSX, you get a complete rheology and texture testing ecosystem:

  • DVNext for advanced rotational rheology and yield stress

  • CTX for texture and mechanical performance

  • RSO for high‑precision oscillatory viscoelastic measurements

  • RSX for high‑end controlled rate and stress cone‑plate analysis

With Gemicatech as your Brookfield partner in Egypt, you don’t just purchase instruments—you gain a long‑term technical ally that helps you select, install, calibrate, and optimize each system for your specific industry and methods. This translates into more reliable data, faster decision‑making, and stronger product quality.

  • For expert advice, quotations, or project discussions, contact the team via:
    Contact Page: contact us

  • For quick questions and instant support on mobile, reach Gemicatech directly via:
    WhatsApp: Whats contact

If your goal is to build a world‑class rheology and texture testing lab in Egypt, these Brookfield instruments—backed by Gemicatech’s local expertise—are the smartest way to get there.
