Tablet Hardness Tester in Egypt | Pharmaceutical QC Equipment

What is tablet hardness testing?

Tablet hardness testing measures the force required to break or crush a tablet under controlled conditions. The result is commonly described as tablet hardness or tablet breaking force.

The test helps pharmaceutical laboratories evaluate whether tablets have enough mechanical strength to withstand manufacturing, handling, packaging and transportation, while still meeting the performance requirements of the dosage form.

Depending on the instrument and laboratory method, the result may be reported in Newtons, kilograms or kiloponds. The acceptable range must be defined for the specific formulation and product rather than copied from a general value.

Why do laboratories need a tablet hardness tester?

Tablet strength can change when formulation ingredients, compression force, dwell time, tooling, moisture, coating or manufacturing conditions change. A dedicated tablet hardness testing machine helps the QC team measure this property with a defined procedure.

• In-process control: Monitor tablet strength during compression and production.
• Finished-product testing: Evaluate tablets before release.
• Formulation development: Compare excipients, compression settings and product designs.
• Packaging evaluation: Review resistance to handling and mechanical stress.
• Batch investigation: Identify changes between acceptable and unexpected batches.
• Process optimization: Balance mechanical strength with disintegration and dissolution performance.

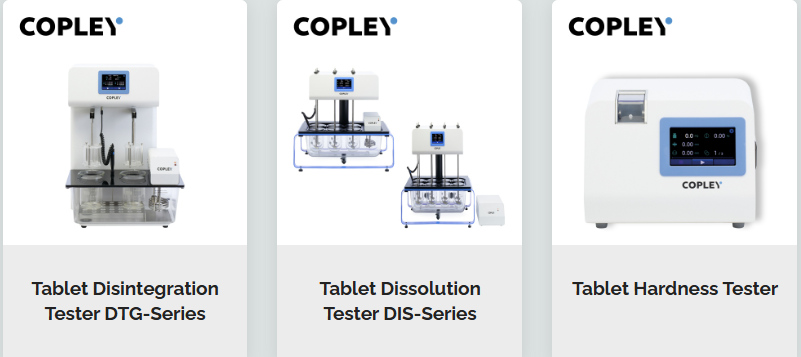

Copley tablet hardness testers in Egypt

Copley tablet hardness testers are designed for measuring tablet breaking force in pharmaceutical QC, production and research environments. The correct configuration depends on your tablet dimensions, expected force range, testing volume, reporting needs and laboratory procedure.

Copley TBF 100i

The TBF 100i tablet hardness tester combines a compact design with microprocessor-controlled data collection. The model is intended for routine tablet breaking force testing and supports organized measurement and statistical reporting.

The TBF 100i is designed for tablet breaking force testing in pharmaceutical QC and R&D laboratories. Confirm the exact configuration, specifications and current availability before ordering.

Copley TH3

The TH3 tablet hardness tester is a portable option for quick breaking force checks in production or laboratory environments. Different configurations may provide different maximum force ranges, so the selected model should match the product and test procedure.

The TH3 is designed for practical tablet hardness and breaking force testing in pharmaceutical production and laboratory environments. The correct model should be selected according to the required force range, tablet dimensions and approved testing procedure.

USP and Ph. Eur. tablet hardness testing

Pharmaceutical laboratories often search for a USP tablet hardness tester in Egypt or a Ph. Eur. tablet hardness tester because the instrument must support the procedure and documentation required by the laboratory.

USP <1217> and Ph. Eur. 2.9.8 are associated with tablet breaking force testing. However, the final selection should consider the complete laboratory method, product dimensions, required force range, test speed and reporting requirements.

What should be confirmed?

• Applicable USP or Ph. Eur. reference.
• Maximum tablet diameter and thickness.
• Expected breaking force range.
• Measurement unit required by the laboratory.
• Manual, semi-automatic or automated operation.
• Data recording, statistics and reporting requirements.
• Calibration, verification and maintenance procedure.

How to choose a tablet hardness tester in Egypt

1. Define your tablet dimensions

Measure the diameter, thickness and shape of the tablets you will test. These dimensions affect the suitable tester, contact surfaces and positioning method.

2. Estimate the required force range

Review historical data, formulation specifications and expected product behavior. The selected instrument should cover the working range with suitable resolution, not only the theoretical maximum.

3. Choose the operating format

A portable manual tester may be suitable for quick production checks. A laboratory QC department may prefer digital measurement, stored results, statistics and a more structured reporting workflow.

4. Review measurement and reporting

Check the display, measurement units, data storage, statistical calculations, result export and report format. These features become more important when multiple operators test several batches each day.

5. Confirm sample handling

The tablet should be positioned consistently between the contact surfaces. Ask how the tester manages different tablet shapes, coated tablets, scored tablets and unusual dosage forms.

6. Ask about support in Egypt

Confirm delivery, installation, user training, verification, preventive maintenance, spare parts and after-sales support before purchasing.

Tablet hardness testing in the pharmaceutical QC workflow

Hardness testing is one part of a wider tablet quality program. A tablet can be strong enough for handling but still require separate testing for disintegration, dissolution and friability.

For the complete tablet-testing workflow, read Pharma Tablet Testing Equipment Egypt | Best Price. For drug-release testing, visit Tablet Dissolution Tester DIS Series.

Hardness tester vs. friability tester

A Tablet Hardness Tester measures the force required to break a tablet. A Friability Tester evaluates how much mechanical wear, abrasion or mass loss occurs during a defined test.

These tests answer different questions and should not be used as substitutes. Many pharmaceutical QC laboratories need both instruments to evaluate tablet strength and resistance to handling.

Common buying mistakes

• Choosing a tester based only on the lowest price.
• Comparing force ranges without checking resolution and accuracy.
• Ignoring tablet diameter, thickness and shape.
• Confusing hardness testing with friability testing.
• Not confirming USP or Ph. Eur. requirements for the exact model.
• Ignoring data, statistics and reporting requirements.
• Buying a tester without asking about verification and service.
• Using general hardness values instead of product-specific specifications.

Why buy from Gemicatech?

Gemicatech supplies and sells tablet hardness testing equipment in Egypt for pharmaceutical QC, production, research and development laboratories. Our team can help you compare the required force range, tablet size, testing format and documentation needs before requesting a quotation.

• Support for pharmaceutical QC and R&D laboratories.
• Guidance on Copley tablet breaking force testers.
• Quotation support based on your actual product and method.
• Delivery and installation coordination in Egypt.
• Operator guidance and after-sales service.
• Access to related pharmaceutical tablet testing solutions.

Explore the Copley Brand and Pharmaceutical Industry Solutions for related testing equipment.
